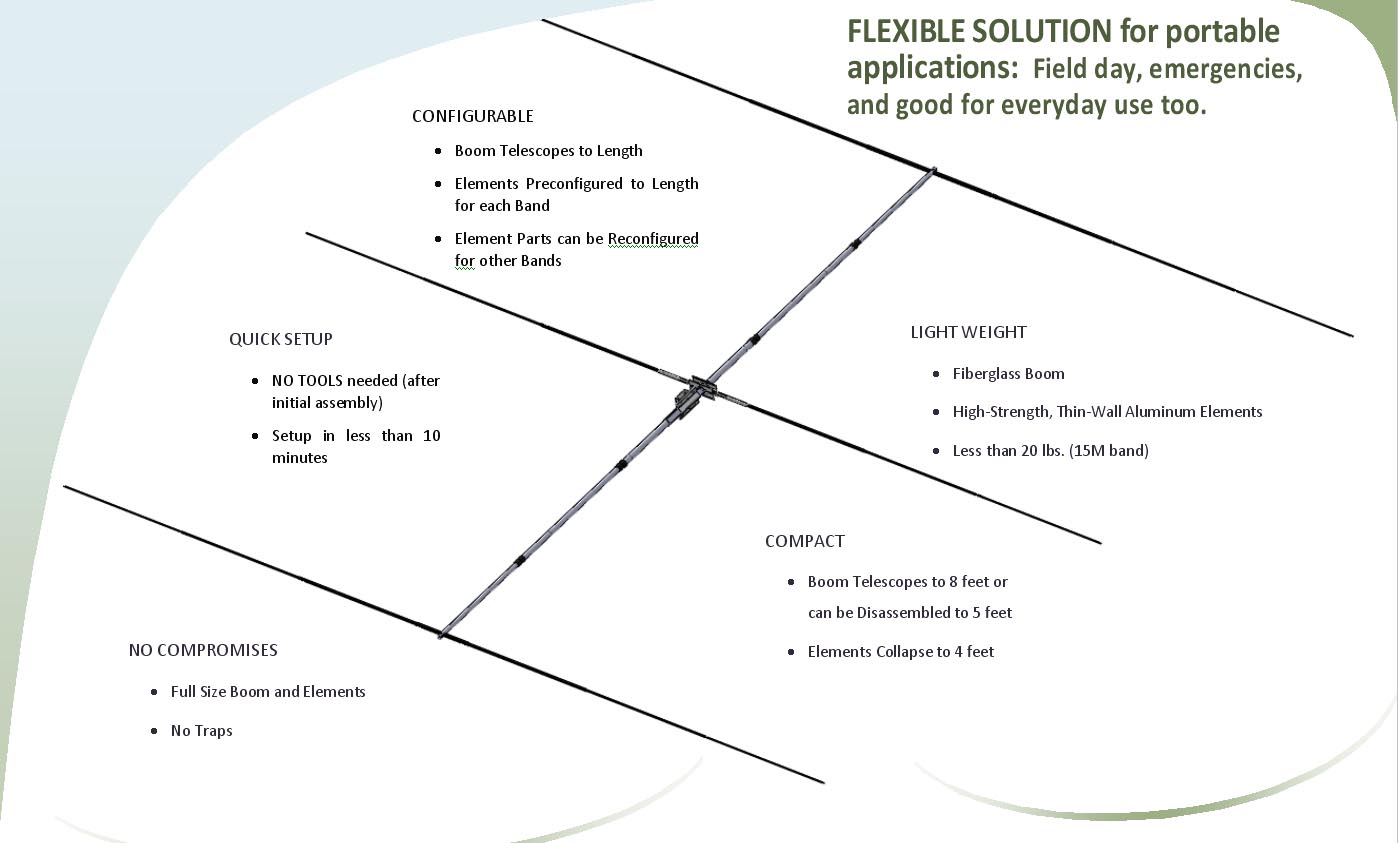

ANNOUNCING THE DZ-3 Yagi Antenna! No tools needed! Sets up in a few minutes!

This antenna was first described by W0DZ in QST for July, 2001. We have ruggedized it, lowered its weight and made it live up to its promise of being able to be set up and torn down in a few minutes using no tools!

A complete DZ-3 antenna with elements for all five bands will be about $850. We expect to be able to ship in September.
Click the picture for a better quality image.

Here's the Yagi Optimizer model for the DZ3 on the 15M band:

Check out these other kits --
No software to load, no digital stuff to create interference, just good old-fashioned analog electronics!

New! HM-17 SWR Meter kit is rugged, requires no power supply, and handles 1W to 1KW(CW) on HF/6M!

We looked around for a good, "no-frills", inexpensive SWR meter and couldn't find any that were made in the U.S. with the features we wanted (high power handling, accurate, sturdy, tip-resistant, good looking). So we made our own, and now you can too! The HM-17 requires only 3 hours to build, costs less than $100, and will provide years of use. Looks great too! Handles as little as 1W and as much as 1KW CW. Meter shows VSWR up to 3:1 and reflected power in percent. All point-to-point wiring; no PC boards! Screwed-on rubber feet won't come off like stick-on feet, and they help keep it from sliding, too. Rugged extruded aluminum case stands up to abuse, and the front-weighted design helps keep the unit from flipping up when coax is attached. Requires no AC or DC power. Use it to adjust antennas for best match to your transmitter. Uses 50 ohm SO-239 connectors. Accurate to +/-5%. High quality parts throughout. Learn how SWR meters work, too, with our comprehensive manual. A great winter project. Now shipping! Download manuals here!

"The kit arrived in good shape. No problem with the packaging. It went together easily. The meter is very attractive and works as advertised and makes a great addition to my ham shack." - Jim, W3WA

New! HT-7 40M AM Handie-Talkie .... Wait, did we say A M??? As in "Ancient Modulation"? Yes, we did!

Coming soon -- HT-4 80M AM Handie-Talkie

Rekindle the days of yesteryear! Operates on the 40M AM calling frequency (7.290MHz). 2W transmitter puts out a healthy AM signal with a simple whip antenna (not included). Connect to a large outside antenna for extended range. Direct conversion circuit. 6-8MHz bandpass filter on input keeps high-power shortwave and local broadcast band stations out. Wide-range built-in electret microphone built-in, or feed your own external mic into the top-mounted jack. 6kHz 7-element crystal filter provides great sounding audio on transmit and receive. Built-in hi-fidelity speaker. Headphone jack for private listening. BNC antenna jack. Accepts Lithium Ion 11.1V/4AH battery pack (not included, see below), or use external power supply. Simple 6 hour kit. $149.99. Two units: $289.99. Amateur license required for purchase. Now shipping!

Download manuals here!

We asked one of our first customers his opinion of the kit. Here's what he said:

"The package was in excellent shape. There were no shortages. It took me about 5-1/2 hours to complete building the kit. The instructions and documentation are excellent. I found the transmitted audio to be very good and the receiver to be very sensitive. Thanks for a quality kit . I expect to be building more of your kits in the near future." -- Jim, W3WA

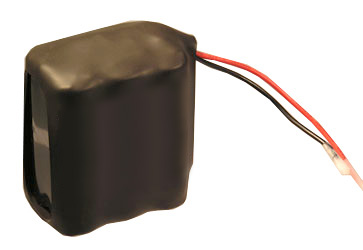

HTA-1 Rechargeable Lithium Ion battery pack: $45.00, or 2 for $85.00

Includes built-in overcharge, overdischarge, overdrain, short-circuit and reversed polarity protection. Weight: 10.4 oz (370g). Dimensions: 2.6" (66mm) x 2.1" (53mm) x 1.7" (43mm). Must be recharged using Lithium Ion charger only. Not for use with NiCd or NiMH chargers. Can be charged in use by connection of a 12VDC power supply, or go to BatterySpace to order an inexpensive charger made for this battery.

HTA-2 57" Extendable whip antenna: $30.00
Plugs into top of HT-7 or into the top of the HTA-3, below
Made by Miracle Antenna of Canada

HTA-3 Inline mechanical tuner: $124.95

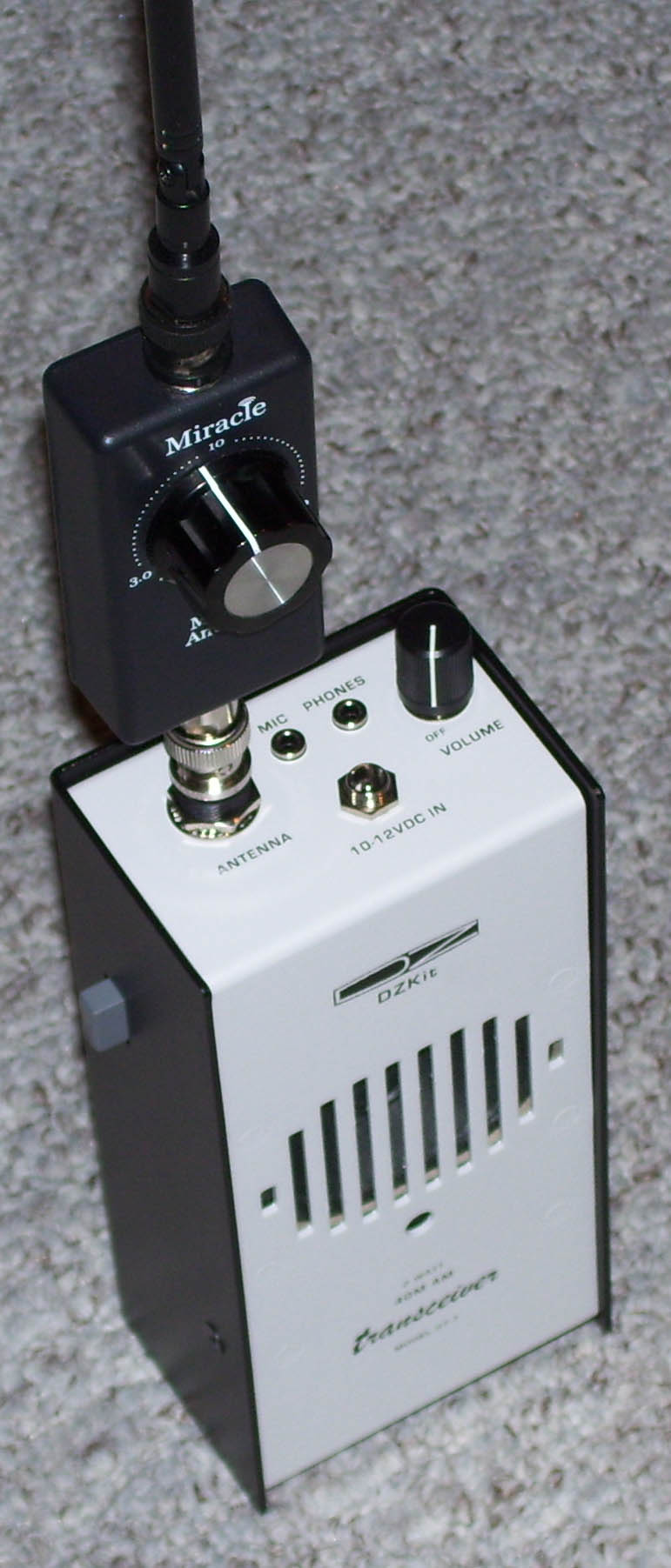

The HTA-3 (Ducker IL from Miracle Antenna of Canada), plugs onto the top of the HT-7. Plug the HTA-2 extendable whip on top, and you have up to 30dB gain on HF receive, and full transmit capability.
