DZKit is Bringing Back the Tradition and Fun of Kit Building

Building a kit yourself:

• instills a sense of pride in your handiwork
• improves your soldering skills
• provides hours of enjoyment building and using your kit
• helps you learn electronics
• allows you to make mods yourself because you built it

Sienna XL HF+6 Transceiver Kit Brochure Double conversion superhet High performance synthesizer Color touch displays Choice of wide variety of crystal filters Full duplex capable with separate Tx/Rx band data outputs High speed QSK Works with many SDR’s as external panadapters 250W PA

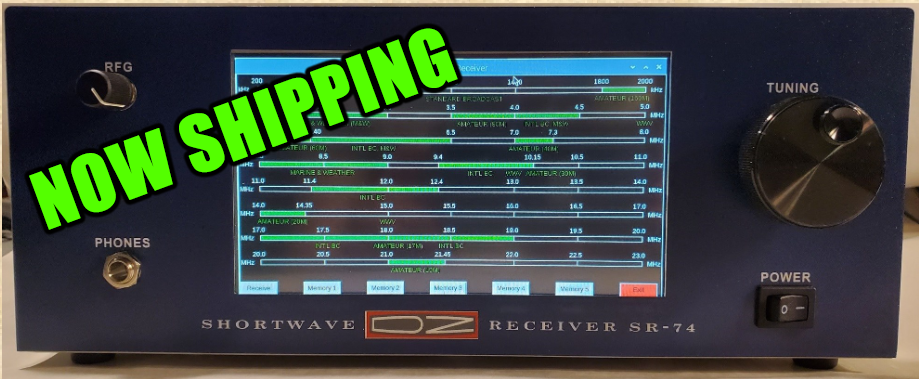

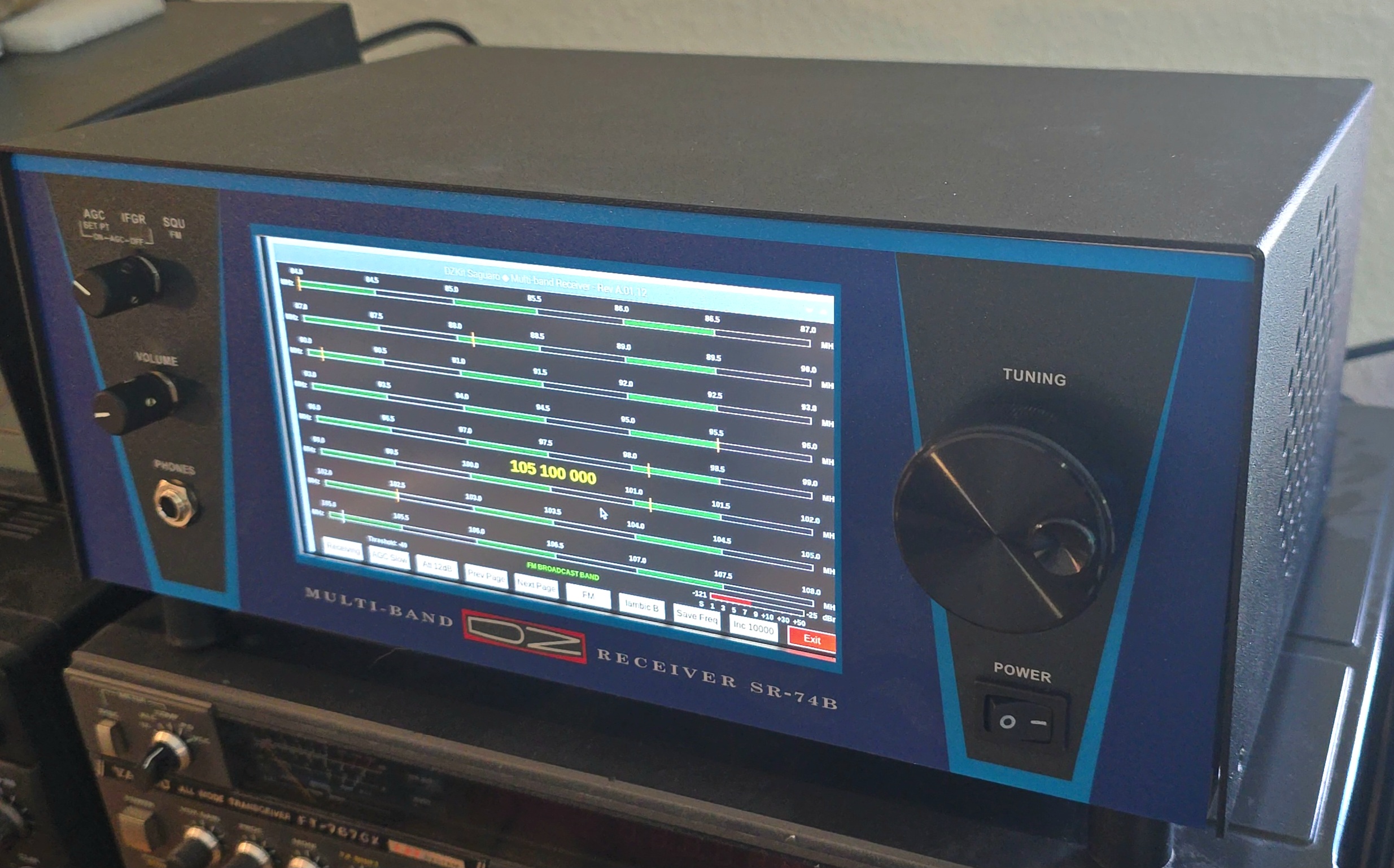

Saguaro Shortwave Receiver Kit SR-74 Datasheet Manual Saguaro Performance Video DZKit Saguaro software covers 200kHz – 108 MHz in 24 bands featuring old-fashioned slide-rule dial with touch capability Plus: Up to 2GHz reception using included Cubic SDR software AM, FM, CW, SSB modes with fixed width filters for each mode Built-in AC power supply (or use 12VDC) High quality chassis Internal and external speakers Built-in CW keyer Standoffs for DIY’ers to add custom circuits 12-hour kit
